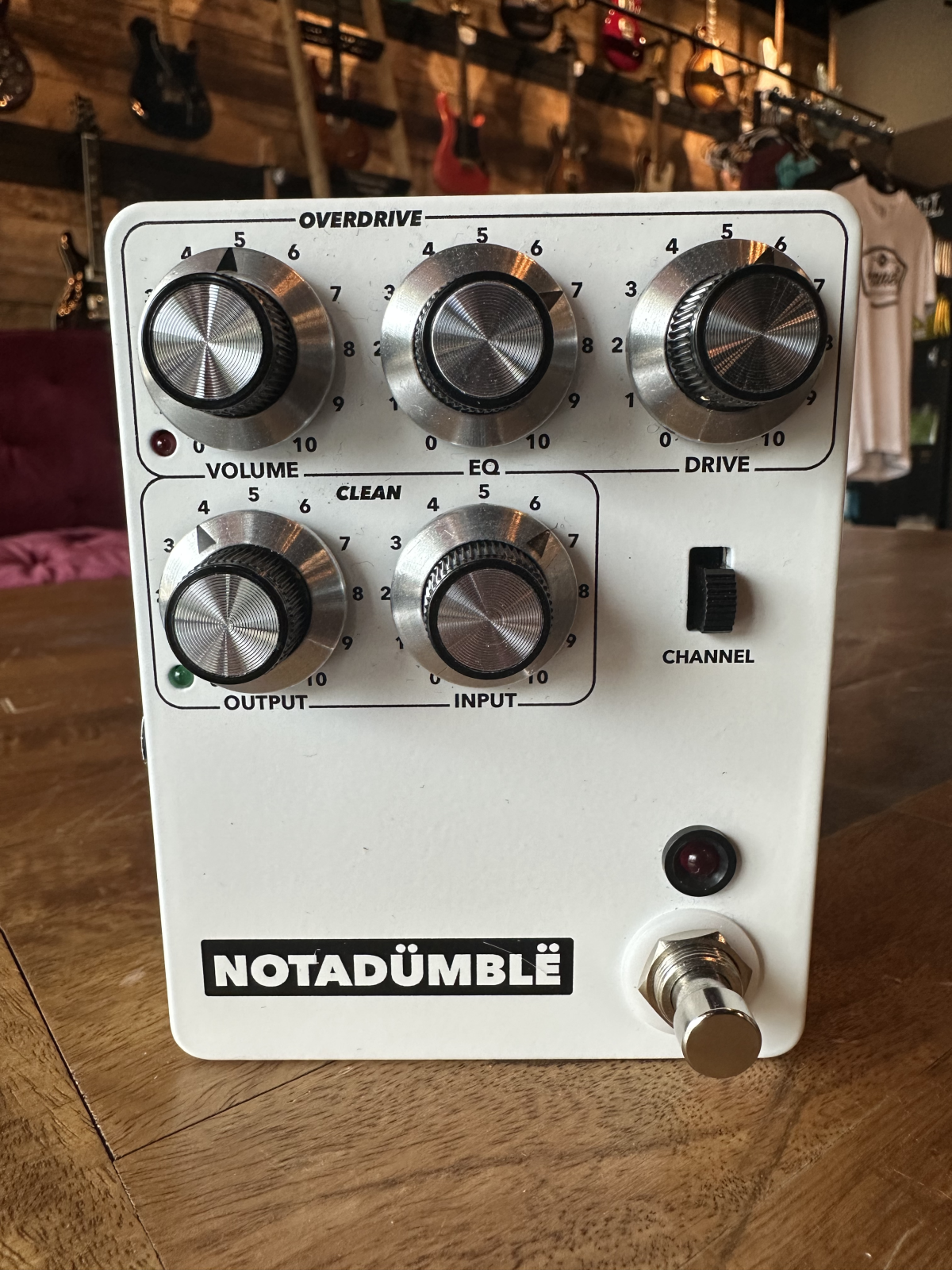

JHS NOTADÜMBLË Guitar Pedal (Assembled)

JHS did a super fun release a year or so back, the Notadumble! This was a DIY Kit, but this particular unit has already been professionally assembled for you!

CONTROLS

Channel Switch - Selects the active channel. Up is the Drive channel, and down is the Clean channel.

CLEAN CHANNEL (Boost)

Input - Attenuates bass and input gain at the front of the circuit. Fully right has no cut. As you turn the control left, bass and gain are gradually attenuated.

Output - Output volume of the Clean channel. Left is less, right is more.

OVERDRIVE CHANNEL

Drive - Controls the amount of overdrive. Left is less, right is more.

EQ - Adjustable low pass filter. Fully right is no cut, as you turn the control left it lowers the treble cut off frequency..

Volume - Controls the overall volume of the overdrive channel. Left is less, right is more.

Presence (internal trimpot) - Controls the upper-mid range and treble frequencies in the gain stage. Left is less, right is more.

Footswitch - True bypass switching.

JACKS

Input - ¼” jack on the right side of the pedal.

Output - ¼” jack on the left side of the pedal.

Requires 9VDC center negative and consumes 10mA. Do not use more than 9VDC. Damage may occur, and your warranty will be voided. This pedal measures  3.7” X 4.7” X 1.66”

Box+ Included!

Thanks for shopping with BME!
