Strymon PCH Active Direct Box

PCH is an advanced stereo active direct interface with a hidden superpower – an onboard console-quality headphone amplifier. Now you can rest easy knowing that the sound of your pedalboard won’t change even a little when passing through PCH, and the headphone amp means you won’t have to ask anyone how you sound.

You’ll know.

PCH has a powerful headphone amplifier onboard, making it easy to monitor or practice listening to the sound of your entire rig or pedalboard in full stereo, no matter the pedal order or the components.

Connecting the output of your pedalboard to a DI is a very different thing than simply plugging your bass or guitar straight into one. Pedalboards can generate very loud output signals, enough to swamp the input of ordinary direct boxes. PCH is different, partially because it runs on 9VDC, and it has enough headroom to handle powerful incoming audio while remaining pristine, ensuring you always sound your best.


No matter what instrument or genre of music you play, if you need to connect unbalanced outputs to a PA, recording interface or flat response speaker system, PCH is the ultimate choice for an absolutely transparent stereo direct interface — and it’s the only one that you can listen to locally via the headphone amp.

In

• Input Impedance: 1 MΩ
• Max Input Level: +20dBu

Thru

• Output Impedance: 100 Ω
• SNR: +135dB (A-Weight)
• Noise Floor: -115dBV (10-22kHz no A-Weight)
• Gain Relative to Inputs: +0dB
• Frequency Response: +/- 0.25dB, 10Hz – 80kHz+

HP

• Output Impedance: 2 Ω
• Frequency Response: +/- 0.25dB, 10Hz – 80kHz

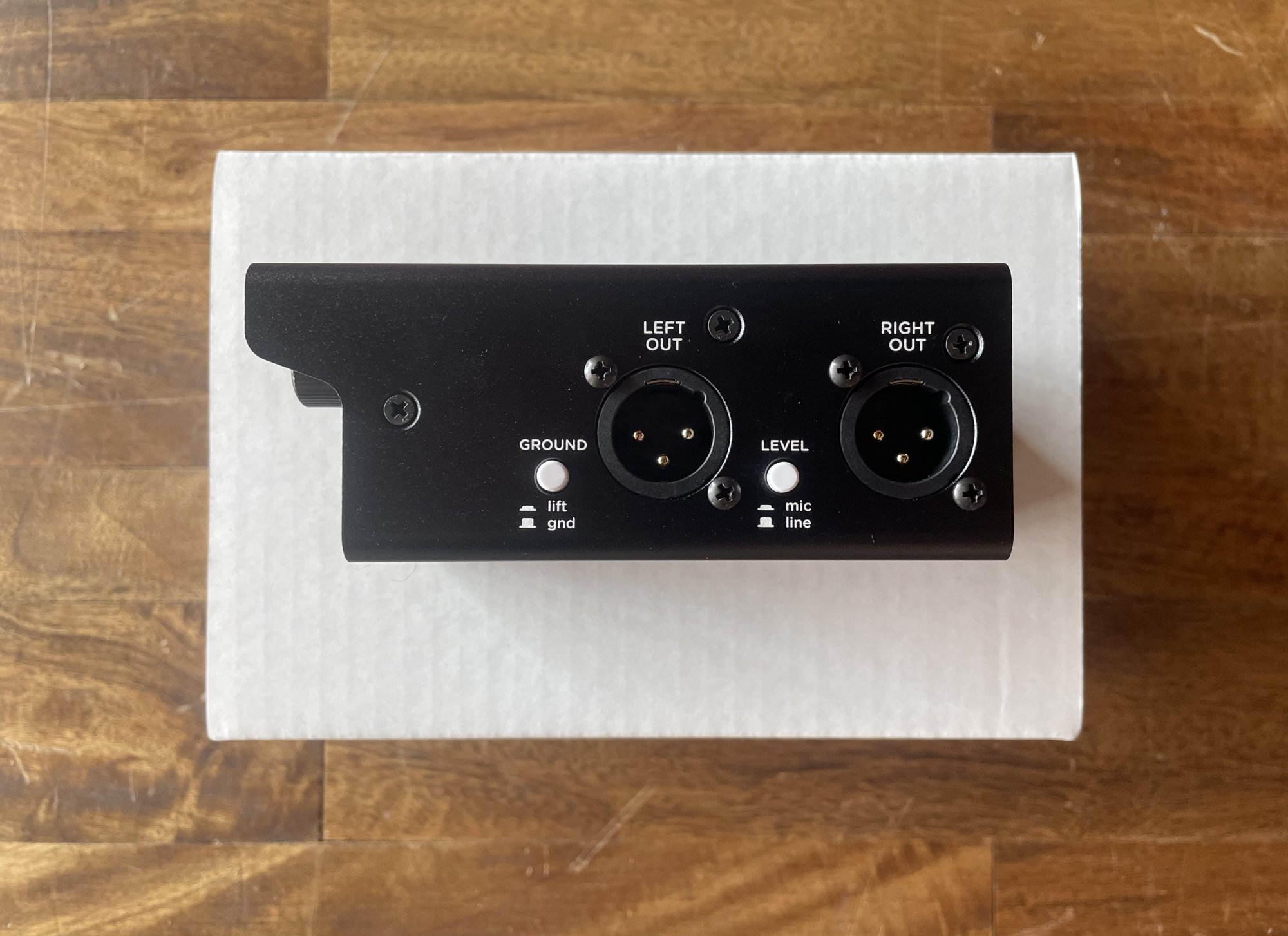

XLR, Line Setting

• Output Impedance: 275 Ω
• SNR: +130dB (A-Weight)
• Noise Floor: -110dBV (10-22kHz no A-Weight)
• Gain Relative to Inputs: +0dB
• Maximum Output Level: +20dBu
• Frequency Response: +/- 0.25dB, 10Hz – 80kHz+

XLR, Mic Setting

• Output Impedance: 100 Ω
• Gain Relative to Inputs: -20dB
• Maximum Output Level: +0.0dBu
• SNR: +125dB
• Noise Floor: -125 dBV (10-22kHz no A-Weight)
• Frequency response: +/- 0.25dB, 10Hz – 80kHz+

Power Supply

• Input Voltage: 9VDC
• Current Requirement: 500mA

Dimensions

• L – 4.88″ (124mm)
• W – 2.97″ (76mm)
• H -1.94″ (50mm)
